CONCRETE EQUIPMENT

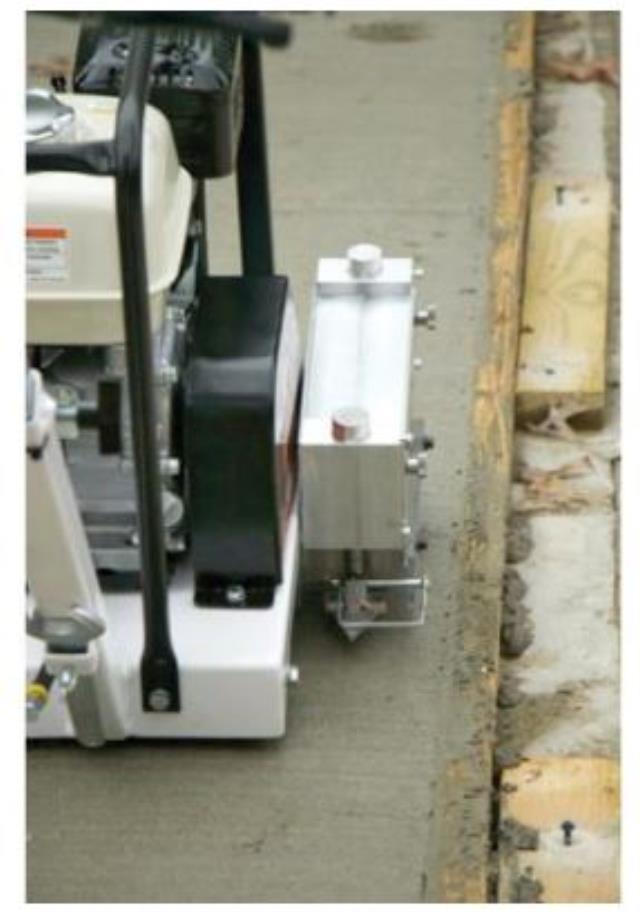

SAW, SOFT CUT


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: DIAMOND PRODUCTS

4 Hour: $75.00

Daily: $140.00

Weekly: $450.00

Monthly: $1,350.00

Instructions: <Click Here>

Quantity: for a period of
4 hour(s) day(s) week(s) month(s)

Additional Information

This saw is for green concrete cutting expansion joints.
This can be cut dry and if needed you can add a vacuum, if rented with vacuum, the vacuum is discounted 50%.
6 Blade Capacity
Features & Benefits:
Maximum cutting depth of 1-3/16
Reliable skid plate system for green concrete
Heavy duty design but light weight enough for two people to lift
Cyclone air filter for increased air flow
Up-cut design to keep debris from going back in the cut
Blade raise/lower mechanical mechanism with spring loaded release
Single ribbed drive belt
Specifications:
Blade shaft RPM: 3,800
Blade shaft diameter: 1
Arbor size: 1
Handle bars: Adjustable
Depth indicator: Standard
WHAT ARE TRUE EARLY ENTRYTM
CONTROL/RELIEF JOINTS?
As concrete is placed and being finished, chemical reactions begin to
take place causing the slab to increase in temperature. Stress, caused by
shrinkage, begins to accumulate rapidly. At this time the concrete is looking for
relief. If not relieved in a timely manner the concrete will relieve itself, resulting
in random cracks appearing across the surface of the slab.
By placing True Early EntryTM joints at the appropriate spacing (normally
10 to 12 apart) the concrete finds the relief its looking for and cracks directly
beneath the cut.
The timing of True Early EntryTM joints are critical! Controlling random
cracking is all about the timing of the cut, not the depth of the cut. Cuts
must be placed between the initial set and the final set of the concrete. This
CONTROL ZONETM is the optimal cutting time to give concrete relief when
it is looking for it the most.

Also check the following item(s) related to the above:

LARGE VAC W/HEPA FILTER 4 CONC. GRINDERS

SMALL VAC W/HEPA FILTER 4 CONC. GRINDERS

LARGE VAC W/HEPA FILTER 4 CONC. GRINDERS

* Please call us for any questions on our saw soft cut rentals Tulsa OK and neighboring communities in Northeastern Oklahoma.
