MAN LIFTS / BOOMS SCISSORS / AERIAL EQUIPMENT

LIFT, 33'ROUGH TERRAIN SCISSOR LIFT 4x4


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: GENIE INDUSTRIES

Model: GS-3369 RT

Daily: $375.00

Weekly: $950.00

Monthly: $1,900.00

Instructions: <Click Here>

Quantity: for a period of
day(s) week(s) month(s)

Additional Information

LIFT, 33'ROUGH TERRAIN SCISSOR LIFT 4x4 w/OUTRIGGERS
-3/4 ton truck or larger to tow.
-diesel engine
MACHINE UNLADEN WEIGHT:
7,600 LBS

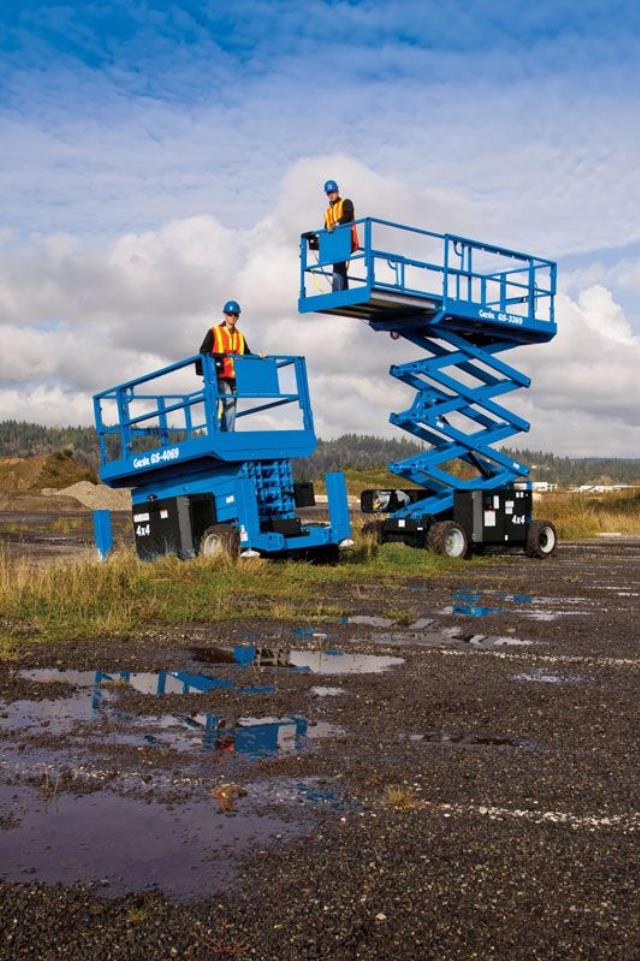

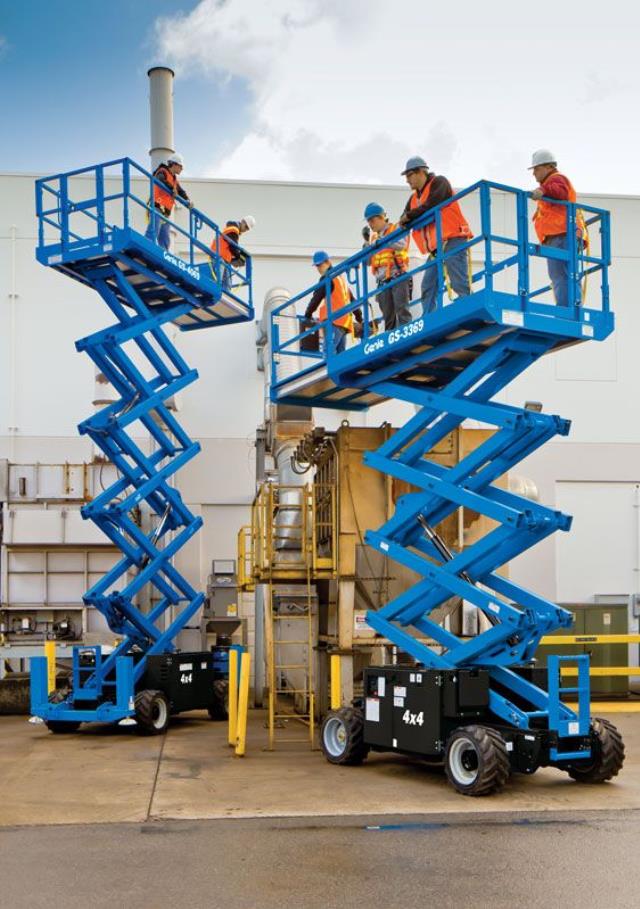

The Genie GS -3369 RT rough terrain scissor lift is a tough, construction-oriented four-wheel drive machine with positive traction control, which can increase operator productivity on demanding outdoor worksites.
Specifications
Working height max. 38 ft 8 in
Platform height max. 32 ft 8 in
Platform height - stowed 4 ft 10 in
Platform length - outside 9 ft 2 in
Platform length - outside, extended 14 ft 2 in
Slide-out platform extension deck - length 5 ft
Platform width - outside 5 ft 3 in
Toeboard height 6 in
Height - stowed (folding rails)(2) 8 ft 6 in
Height - stowed (rails lowered) 6 ft 3.5 in
Length machine - stowed 10 ft 3 in
Length machine - stowed, extended 14 ft 9 in
Length Machine - with outriggers 12 ft 4 in
Width 5 ft 9 in
Wheelbase 7 ft 6 in
Ground clearance (center) 9.5 in
Max. platform occupancy (in/out) 4/4
Lift capacity 1,000 lb
Lift capacity - extension deck extended 300 lb
Max. platform drive height 32 ft 8 in
Drive speed - stowed 3.5mph
Drive speed - raised 0.3mph
Gradeability - stowed 40%
Turning radius - inside/outside 83 in/181.2 in
Tilt sensor activation (front to back/side to side) 3 / 2
Max. outrigger leveling (front to back /side to side) 5.3 / 11.7
Tires - Foam-filled rough terrain 12 26 in
Power
Power Diesel
Fuel Tank 10 gal
Hydraulic tank capacity 18 gal
Weight with outriggers 7,535 lb
RATED WORK LOAD (INCLUDING OCCUPANTS):
1,000 LBS
Lift capacity - extension deck extended 300 lbs
GRADEABILITY DEGREES 45%
-Max. outrigger levelling (front to rear): 5.3
-Max. outrigger levelling (side to side): 11.7
-MAXIMUM WIND SPEED: 28mph
-RATED NUMBER OF OCCUPANTS: 5
-MAXIMUM ALLOWABLE SIDE FORCE: 90LB
Specifications

Also check the following item(s) related to the above:

TRAILER 16' 10k CAP. TILT (2 5/16 BALL)

TRAILER, 10K CAP. TILT (2 5/16 BALL)

TRAILER, 10K CAPACITY TILT (2 5/16 BALL)

* Please call us for any questions on our lift 33 foot rough terrain scissor lift 4x4 rentals Tulsa OK and neighboring communities in Northeastern Oklahoma.
