CONCRETE EQUIPMENT

GRINDER,9" TURBO GRINDER-LITE WEDGE-LESS

Manufacturer Link: <Click Here>


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: EDCO

Model: TL-9

4 Hour: $65.00

Daily: $94.00

Weekly: $362.00

Monthly: $1,090.00

Instructions: <Click Here>

Quantity: for a period of
4 hour(s) day(s) week(s) month(s)

Additional Information

************STRIP******************GRIND**********************REMOVE**************
Sounds Interesting?
****************IMPORTANT 50 FOOT POWER CORD ONLY 10 GAUGE*****************
**********NUMBER 1 MOST IMPORTANT PIECE OF INFORMATION**********************
************ ONLY CAN ADD 50 FEET OF 10 GAUGE POWER CORD*********************
***********OTHERWISE THE CAPACITOR WILL FAIL, AND MOTOR WILL QUIT***********
**HAS 25 FOOT OF CORD ON IT, PLUS 1 ADDITIONAL 50FT 10 GAUGE POWER CORD**
**TOTAL IS 75 FOOT AND THAT IS THE MAX AMOUNT OF POWER CORD ALLOWED***
*********RENTAL INCLUDES QTY. 1 OF A 50 FOOT POWER CORD 10 GAUGE*********
Magna-Trap Turbo-Lite Grinder
The TL-9 is a Direct Drive Grinder with a combination of power and simplicity. The 110-Volt grinder is maintenance free. No parts to service and no belts to replace. Small Grinder with BIG performance. Yet weighs only 81 lbs
This grinder is used for topical applications up to a 1/16 deep. These models are for smoothing, cleaning, thin coating removal, and prepping surfaces. This grinder uses an array of accessories, that vary for specific job/task results. Some jobs may require use of various accessories to achieve desired results. This grinder is contractor and homeowner friendly. Accessories are not included in the rental rate.
-Features
Resurfaces hundreds of sq ft per hour
PRODUCTION RATE: 9 Working Width will grind approximately 350 - 400 Square ft. per hour, with DYMA-SEG accessory (production rate may vary greatly depending on each accessory being used and varies from different job applications)
Compatible with EDCO Vortex 200 Vacuum for dust-free working
At only 81lbs it fits inside car trunks when the handlebar is collapsed
Accepts EDCO Magna-Trap Slide-On Tooling
REQUIRES: 3 DYMA-SLIDER Accessories
Includes 1 magnetic multi-accessory disc, which accepts Dyma-Serts, Strip-Serts and all other Magna-Trap accessories. 3 grinding accessories required per loading
Requires only 110 Volt outlet
weighs only 81lbs
Flexible head
Resurfaces like a large machine
Compatible with EDCO Vortex 200 for dust free working
Handle folds within seconds, ensuring easy transport
2" Vac port
-Ideal For...
Resurfacing hundreds of sq. ft. per hour
Grinding concrete
Removing hard coatings
Remove thick coatings
Smooth rough floors
Working in compact areas
Some Edge Grinding applications
Light turbo grinder tasks
Removing mastics, thin-sets, paint build-ups, resins and more
-Product Applications...
Grinding, Stripping & Scraping
Surface & Marking Removal
Surface Leveling
-Specs TL-9 Turbo-Lite Grinder
-Part# 58900
-Power Electric
-*Horse Power 1.5HP, 115V
-Phase Single
-AMPS 15
-*RPM 1690
-Length 41"
-Width 16.5"
-Height 41"
-Weight 81lbs
* RPM's are based on the machine's accessory speed.
** As rated by the engine manufacturer. The power rating of the engine indicated on this site is the net power output tested on a production engine for the engine model and measured in accordance with SAE j1349 at 3600 rpm. Mass production engines may vary from this value. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance, and other variables.

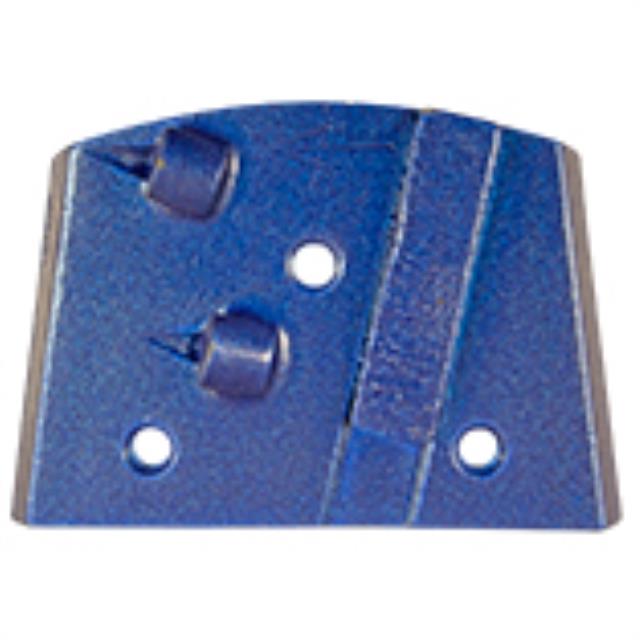

PCD'S-BLUE (PCDI-LB)

Also check the following item(s) related to the above:

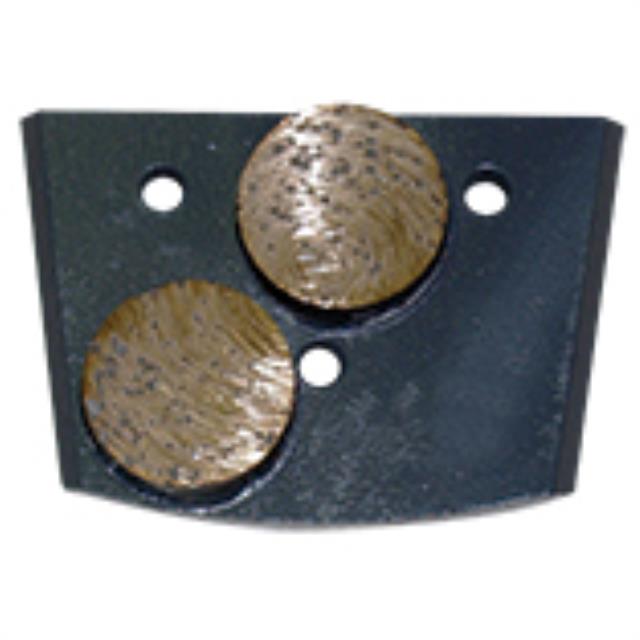

GRINDER, DOUBLE DYMA DOTS

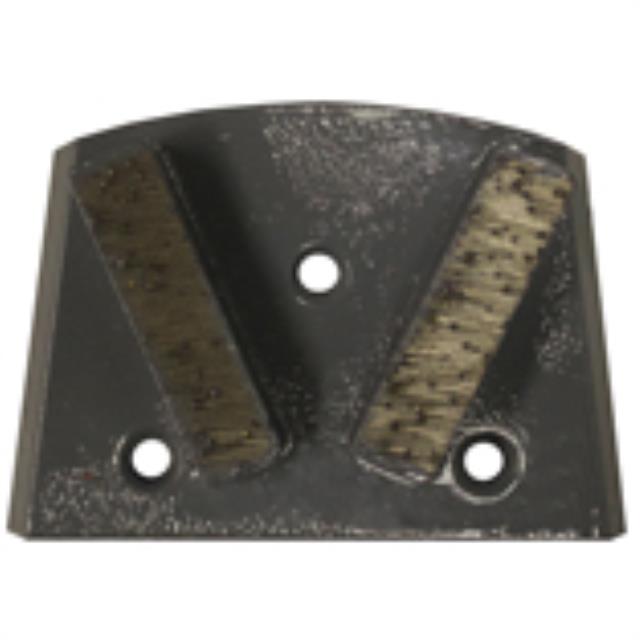

GRINDER, DYMA SEG

GRINDER, LEFT HAND PCD W/ BACKING SEG

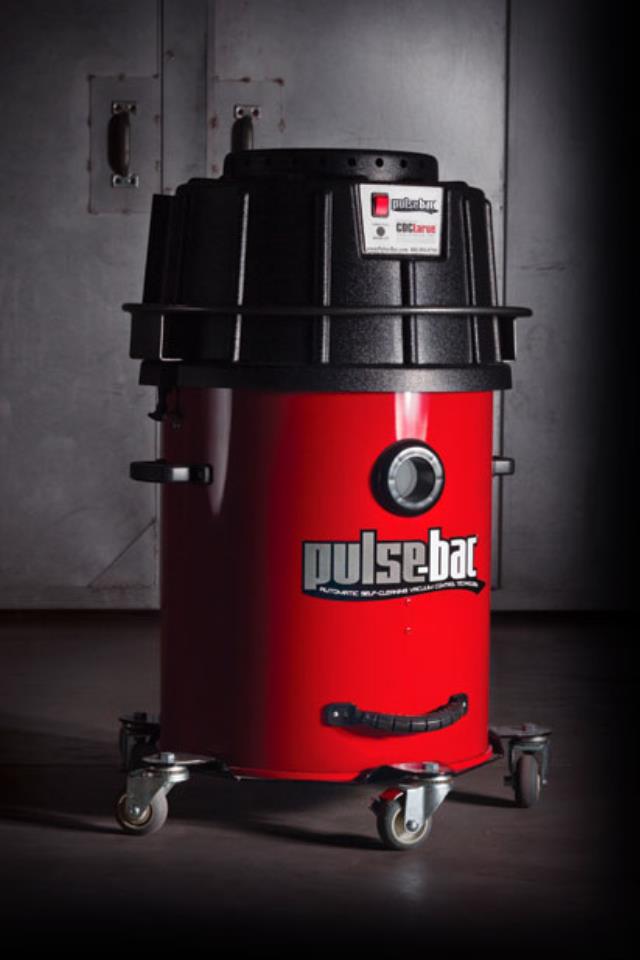

SMALL VAC W/HEPA FILTER 4 CONC. GRINDERS
