MAN LIFTS / BOOMS SCISSORS / AERIAL EQUIPMENT

BOOM LIFT, 85' TELESCOPIC/STRAIGHT 4WD


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: $850.00

Weekly: $2,200.00

Monthly: $3,999.00

Quantity: for a period of
day(s) week(s) month(s)

Additional Information

ABC EQUIPMENT RENTAL STOCK A VARIETY OF DIFFERENT BOOM MANUFACTURERS IN THIS CLASS, SOME SPEC ARE LISTED BELOW, SPECS WILL VARY ON EACH INDIVIDUAL BOOM LIFT.
85' Telescopic Boom Lift
MUST ONLY BE OPERATED ON FIRM LEVEL SURFACES
-Haulotte Stop Emission System
-Haulotte Activ Screen
-Telematics solutions
-4 wheel drive / 2 wheel steer (O) or 4 wheel steer (PRO)
-Oscillating axle
-Smooth & proportional movements
-Automatic wheel differential lock
-Upper control box protection cover and tool tray in ultra-rugged composite
-Large modular platform 8 ft x 3 ft with swing door entry gate
-Basket rotation 180 (+90:-90)
-Swing-out engine tray for easy maintenance access
-Sound and light alarm for tilt and load
-Movement alarm and rotating beacon light
Specs:
Weight 39500 lb
>Measurements

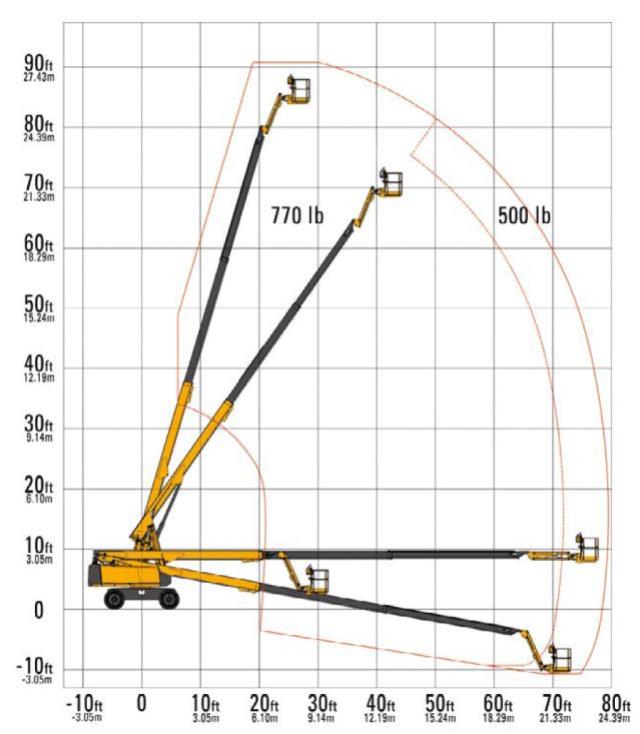

Working height 91 ft
Platform height 85 ft
Horizontal outreach 78 ft 3 in
Below grade reach 9 ft 8 in
Lift capacity 500 / 770 lb (2 pers)
Platform size 8 ft x 3 ft
Length - stowed 42 ft 1 in
Length - transport 32 ft 2 in
Width 8 ft 2 in
Height - stowed 9 ft 4 in
Height - transport 9 ft 9 in
Vertical jib rotation 133 (- 66 / + 67 )
Platform rotation 180 (+ 90 / - 90 )
Turret swing 360 continuous
>Productivity
Tailswing 60 in
Wheelbase 9 ft 2 in
Ground clearance 19 in
Tilt alarm 4
Drive speed 0.3 - 3.1 mph
Maximum wind speed rating 28 mph
Gradeability 45 %
Turning radius - outside 21 ft 6 in
Tires - solid rough terrain 40.4 x 14.4 in
Jib length 6 ft
Fuel tank 32 gal
Engine Deutz 55.5 kW, 74 hp (t4f)
Weight 39,500 lb
>Power Diesel
-Hydraulic tank capacity
-Fuel tank capacity 32 gal
>Weight and Floor Loading
-Weight 25,160 lb
-Tire contact pressure 90 psi
-Occupied floor pressure 304 psf

* Please call us for any questions on our boom lift 85 foot telescopic/straight 4wd rentals Tulsa OK and neighboring communities in Northeastern Oklahoma.
