BOOM LIFT, 38' SLAB ARTICULATED-DELIVERY

Manufacturer Link: <Click Here>


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: SNORKEL

Model: A38E

Daily: $278.00

Weekly: $743.00

Monthly: $1,898.00

Instructions: <Click Here>

Quantity: for a period of
day(s) week(s) month(s)

Additional Information

THIS UNIT IS DELIVERY ONLY. UNLESS CUSTOMERS TRAILER MEETS OUR REQUIREMENTS TO SAFELY TOW LOAD AND UNLOAD. IF CUSTOMERS WANT TO USE THEIR OWN TRAILER IT IS THE SOLE DISCRETION OF ABC EQUIP RENTAL.
-SNORKEL'S ALL ELECTRIC BATTERY POWERED A38E ARTICULATED SLAB BOOM LIFT ONLY USED ON FIRM, FLAT, LEVEL SURFACES. NOT AN OFF-ROAD LIFT. DO NOT USE RAISE BOOM ON, THESE EXAMPLES BUT NOT LIMITED TO GRASS, GRAVEL, DIRT ETC.
-NEW MEWP / ANSI STANDARDS INDOOR USE 2 PEOPLE IN PLATFORM AND OUTDOOR ONLY 1 PERSON IN PLATFORM
-Operate the aerial platform only on a firm, flat, level surface capable of withstanding all load forces imposed by the aerial platform in all operating conditions
-Raise the booms only when the aerial platform is on level ground.

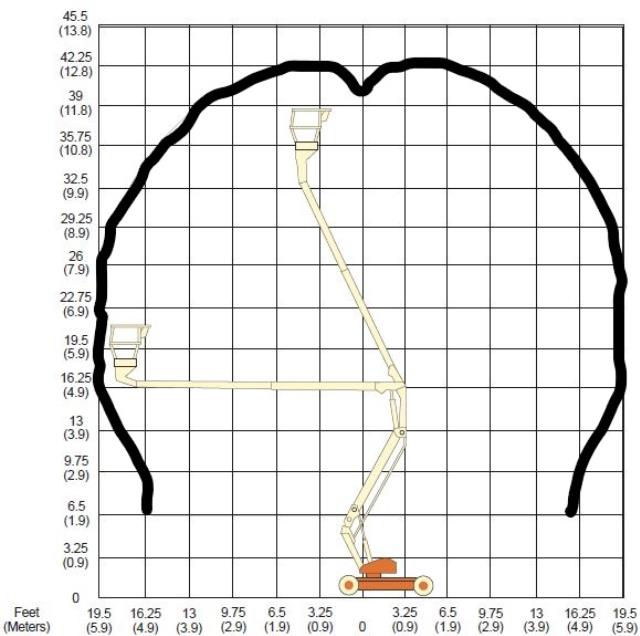

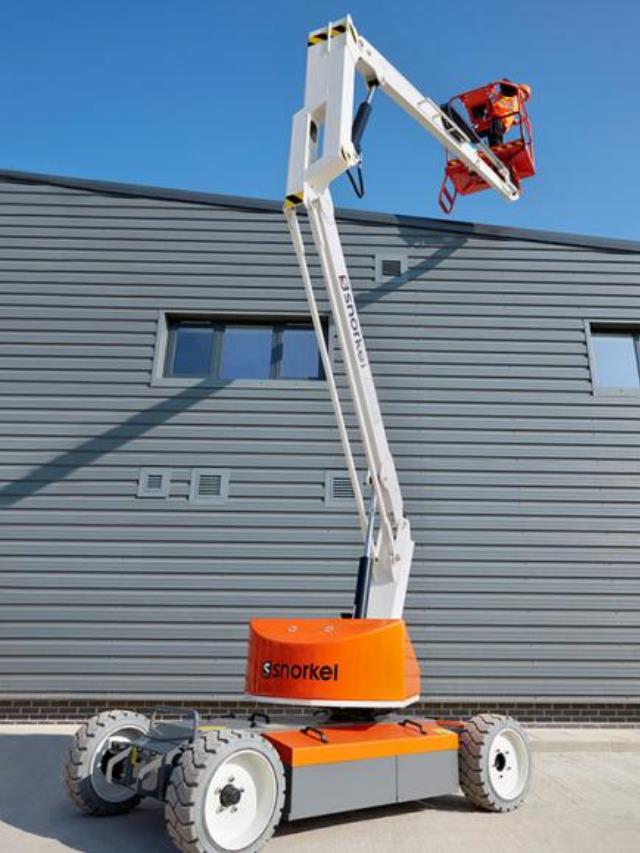

The class-leading Snorkel A38E electric articulated boom lift delivers an impressive height-to-weight ratio, ideal for jobsites with reduced floor loadings. Featuring powered platform rotation, the A38E has a superb working envelope and proportional controls for precise positioning. With efficient electric drive, this durable electric boom can travel up to 10 miles (16km) on a single charge*.
*under test conditions
Specifications
Weight: 8,554 lbs
Platform capacity: (SWL) 475 lbs indoor use 2 persons on platform / outdoor use only 1 person on platform
Max. working height: 43 ft 7 in
Max. platform height: 37 ft 7 in
Max. horizontal reach: 20 ft 0 in
Clearance height at max. outreach: 17 ft 9 in
Platform floor size (inside): 27.1 in x 43.7 in
Overall length: 13 ft 4.8 in
Overall width: 4 ft 11 in
Stowed height: 6 ft 8 in
Ground clearance: 4.7 in
Max. drive height: 37 ft 7 in
Max. wind speed: 28 mph
Max. drive speed (elevated): 0.4 mph
Max. drive speed (stowed): 2.5 mph
Raise / lower time: 83 / 68 seconds
Gradeability: 36%
Platform rotation: 90
Superstructure rotation: 360 non-continuous
Tailswing (riser boom elevated): 0 in
Tailswing (riser boom stowed): 55 in
Inside turning radius: 3 ft 8 in
Outside turning radius: 7 ft 10 in
Tires: 22 x 9 16 non-marking rubber
Controls: Proportional
Drive system: DC direct drive
Power source: 8 x 6V, 220Ah batteries
Specifications subject to change without notice. The equipment hereunder have been subject to limited testing, and any performance specifications and representations are the result of limited testing. Photos and diagrams are shown for illustrative purposes only. Snorkel / ABC Equipment Rental makes no warranty, representation, or guarantee regarding the information contained herein or the suitability of its equipment for any particular purpose. It is the customer's responsibility to independently determine suitability of any equipment or parts, and to test and verify the same. Refer to appropriate Snorkel operator s manual for detailed instructions on the proper use and maintenance
-Features
Snorkel Guard secondary guarding system
Proportional controls
Hydraulic platform rotation
Minimal front boom overhang
Ultra-tight inside turning radius
Tilt alarm
Direct DC drive
Non-marking tires
Integrated battery charger 90-240V 25A 50/60Hz
Hour meter & on-board diagnostics display
Horn
Flashing amber light
Drive motion alarm
Power line to platform
